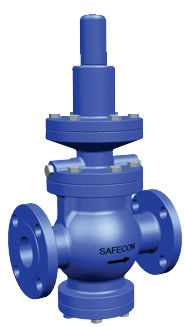

| Steam Service : SC-4000 Model |
Self Acting, Pilot & Piston operated Pressure Reducing Valves are most popular for pressure
reduction of STEAM in all types of Industries. The Valve operates on Spring Balance principle.
The Downstream pressure is sensed below stainless steel diaphragm which is balanced by
the spring tension. Increasing spring tension, increases outlet pressure and vice versa.
The Valve has additional external Sense Line provision also, which improves performance
and accuracy of outlet pressure. |
| |
| Size: |
15NB - 200NB |
| Rating : |
BS10 Table H, Class 150 & 300 |
| End Connection : |
Flanged, Screwed |
| Material : |
Carbon Steel ,Alloy Steel & Stainless Steel |
|
|
|

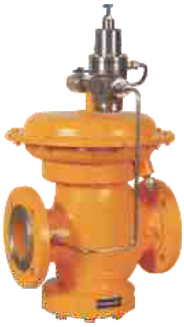

| Pilot Operated Pressure Reducing Valve
For Gas & Air: SGR-6600-P |
| Series SGR-6600-P Regulators are Pilot operated for control of gas & air pressure. In single
stage, pressure reduction can be achieved very precisely up to 1/10th of the inlet pressure.
Pilot operated Regulator gives very precise downstream pressure and very low fluctuation.
They are extensively used as active and monitor control in series for Natural Gas Pressure
Reducing System. Valve has very high flow Capacity and very precise regulation with the help
of Pilot. |
| |
| Size: |
50NB - 200NB |
| Rating : |
class 150 & 300 |
| Material : |
Carbon Steel & Stainless Steel |
|
|
|

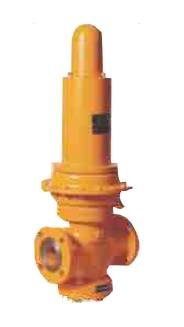

| Gas Pressure Regulators: SGR-6600 |
| Type SGR-6600 Regulators are Self Actuated - Spring & Diaphragm operated for precise
control of Gas pressure for maximum combustion efficiency in commercial gas installation.
The Regulators maintain the outlet pressure steadily irrespective of varying inlet pressure in
the pipeline. These high capacity regulators are used for Air, Nitrogen, Natural Gas,
Hydrogen and many other Industrial Gases. |
| |
| Size: |
15NB - 150NB |
| Rating : |
Class 150 & 300 Class |
| Maximum inlet pressure : |
20 kg/cm2 |
| Minimum outlet pressure : |
50 mm WC |
| Material : |
Carbon Steel & Stainless Steel |
|
|
|

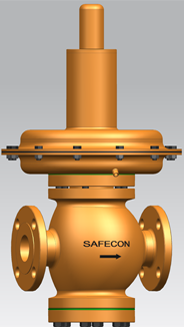

| Liquid Pressure Regulating Valve (SC-5110) |
- Automatically reduces a higher inlet pressure to a constant lower outlet pressure.
- The valve consists of a main valve and Pilot (PR-510) pressure reducing control pilot.
Slight changes in downstream pressure acts on topside of control diaphragm causing
main Valve to counteract pressure changes and hold a constant outlet pressure.
- The regulator will reduce the upstream pressure to a constant downstream pressure
regardless of the change in flow rates/or inlet pressure. The pilot is a Normally Open
valve that senses the downstream pressure.
- Spring Range : Standard : 20-175 psig. Optional : 5-35 psig.
|
|
|
|
|
|
|
| |
|
