| Function |

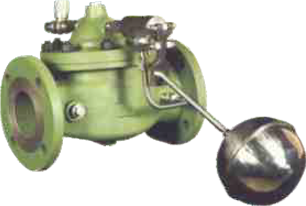

| The Model SC-1110 Modulating float control valve to
maintain constant liquid level in storage tanks and
reservoirs by compensating for variations in supply or
demand, keeping the tank full. |
| Operation |
The Ball type float operated Pilot Control is installed at
the high liquid level in the tank/reservoir and is
connected via tubing or pipe to the main valve. As the
liquid level changes, the float control proportionally
opens or closes the main valve, keeping the liquid level
nearly constant.
Size : 25NB - 400NB |
| |
|
|
|

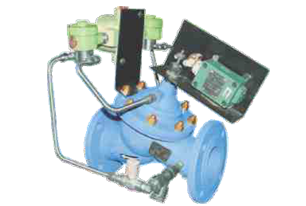

Digital Control Valve
(Set-Stop) Valve SC-3110-66
(Globe) |
This is an electrically actuated, hydraulically operated
multi-function control valve. Used extensively in
loading terminal automation systems in refineries and
storage tanks of petroleum products for effective and
accurate filling of tankers and railway wagons. It has two
solenoid valves, receiving signal from batch controllers
to position the valve for low flow/medium flow / high
flow conditions as programmed.
Size : 25NB - 400NB
|
| |
|
|
|

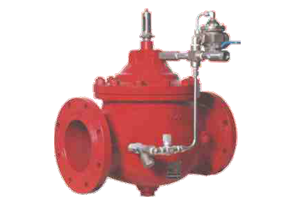

| Deluge Valve SC-7001 |
Deluge Valves Models 7001 are manufactured
with Dry Trim (Pneumatic Actuated) and Wet Trim
(Hydraulically Actuated). Both options are available with
Electrical Trim Solenoid Actuated (Model 1110). All
trims are factory piped on the Valve itself. It also has
Manual Station as Test Trim, Manual Override and Drain
Line. The valve opens on demand to provide water flow
to the fire protection sprinkler system. Pilot system can
be hydraulically, pneumatically or manually operated.
Opening of the Valve is by electrical signal to solenoid
valve/loss of control pressure. The Pilot and Diaphragm
design has many advantages as...
|
- Quick respose/fast opening
- Low friction
- High flow capacity
- Minimum maintenance
- Imported Diaphragm & Patented Quad Seal Ring for
zero leakage.
Size : 25NB - 400NB
|
|
|
|
| Solenoid Control Valve |
| Function |
|
Operated by two way-three way solenoid pilot valve,
3110 a Solenoid Control Valve is an on-off control
valve that either open or closed upon receiving an
electrical signals to the solenoid pilot control, provides
two position (on-off) Operation.
|
| Operation |
|
This valve is consist of a "ACV" main valve and a two
way solenoid valve. The main valve opens fully or closes
drip tight depending upon the actuation position of the
solenoid, energized to open/energized to close. The
valve may be remotely operated by times, relays, probes
or any triggered device to the solenoid.
Size : 25NB - 400NB
|
| |
|
|
|
| Slow Acting Check Valve
8110 |
- Non return function, closes automatically in case of
reversal flow.
- The valve allows flow when inlet pressure is higher
than outlet pressure.
- In case of reverse flow, the valve closes within
appropriate time to ensure it does not generate any
surge / water hammer.
- Ideal for Air craft fuelling application.
- IValve opens and closes at controlled (adjustable) speed
to ensure smooth flow.
Size : 25NB - 400NB
|
| |
|
|
|
| Pressure Relief Valve 6110(Globe) |
- Auto Re-circulation on a Refueller to control the
pumping pressure of Air Crafts.
- Solenoid Override or Pneumatic Override to safeguard
the system. This can be operated remotely to
re-circulate full flow.
- When installed in Main line, it prevents upstream
pressure dropping below preset value.
- When installed on a By-Pass line, it controls main line
pressure by relieving excess pressure in By-Pass/sump.
- Ideal for pump by pass to protect the downstream
equipments
- Relief pilot (PR-610) is normally closed due to spring tension.
- With increase in upstream pressure above set value,
Pilot (PR-610) opens which makes Main Valve to open fully.
- Spring Range: Standard: 20-200 psig. Optional: 5-30 psig.
Size : 25NB - 400NB
|
| |
|
|
|
|
|
