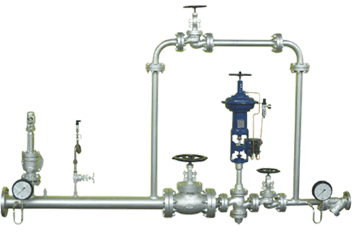

| Pressure Reducing Station |
|
|
|
Steam Service : SC-4001 Model
(with IBR approval and certification) |
| Complete assembled unit of pressure reducing station, sized and selected based on
Customer's requirement of Flow Rate, Pressure, Temperature, etc. PRV is of Self Regulating
type Model SC-4000, generally for low-pressure duty. Recommended PRV for high-pressure
duty and higher turn down ratio (up to 40:1) is Robotrol operated Control Valve -
Model: SC 142. |
| |
| Size: |
25NB X 50NB - 250NB X 350NB |
| Pressure Range: |
0-150 psig - 450 psig. |
| Pressure Rating: |
Class 150, 300, 600, BS 10 Table H, etc. |
| Material: |
Cast Steel and Alloy Steel |
|
|
|

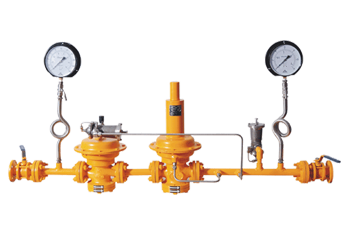

| Pressure Reducing Station for Gas SC-6601 Model |
| Complete assembled unit of pressure reducing station, sized and selected for controlling
pressure in Natural Gas, Nitrogen, Hydrogen, LPG, Air, etc. Each PRS is sized and
manufactured based on customers process parameters such as Flow Rate, Inlet Pressure,
Outlet Pressure, other Safety requirements such as Safety Shut-off Valve with Over Pressure
and Under Pressure seting, Diaphragm Operated Relief Valve, Flame arrester etc. can be
incorporated as required. Active & Monitor Regulators with by-pass line is also possible. The
unit gives excellent Downstream Control of Pressure with full safety. |
| |
| Size: |
25NB - 150NB |
| Inlet Pressure : |
0-30kg/cm2 |
| Minimum Outlet Pressure : |
50mm WC |
| Material : |
Cast Steel, Alloy Steel & Stainless Steel |
|
|
|
|
|
|
|
|
| |
|
